SKU: ING-SK-ALP/E-1

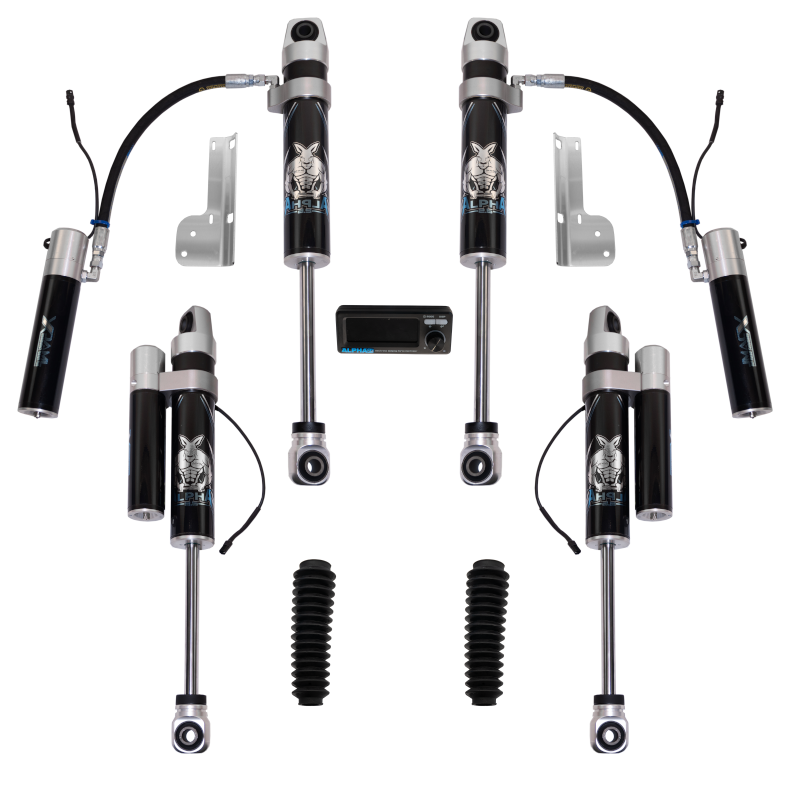

Alpha Shocks Ineos Grenadier Electric Adjustment

$7,800.00 Inc GST

Alpha Shocks will take your Ineos Grenadier to next level of ride and comfort while lifting your Grenadier / Quartermaster.

Contact Us

Videos of this product

Description

The Ineos Grenadier Alpha Shocks are built designed and tuned specifically for the 4×4 and GVM market. Whether your going off road, towing, 4 wheel driving or daily driving Alpha Shocks achieve optimum comfort, stability for you and your Ineos Grenadier.

JMACX was the first to bring electric damping adjustment shocks to the 4×4 market. Many manual style adjustment shocks rarely get adjusted due to time and not fully understanding how to adjust them to a desired damping. Therefore losing out on features of the shocks, electric damping allows you adjust from in cab. The Alpha Shock electric adjustment is provided by means of tried and tested quality Japanese technology with over 20 years experience in the motorsport industry. Active Control, a feature not offered by other 4×4 shock manufacturers. This activates according to the G-force of the vehicle, automatically adjusting as your vehicle corners and brakes making your vehicle ride like a dream. The response time of the electric adjustment is 0.26 second meaning results are practically instant. The electric in cab controller module can be adjusted right from the drivers seat with an optimal 16 stage adjustability achieving riding comfort based on changing driving conditions.

Inclusions

Features

(12)

Designed for the 4×4 market

Thousands of hours invested in R&D to provide a premium product with ultimate performance on and off road.

True 2.5″ bore shocks

True 2.5 inch (63.5mm) internal bore. Many claim to be 2.5″ yet they are often 2.5″ external body diameter.

Premium construction

CNC machined from steel body. Cerakote ceramic polymer finish / T6 billet alloy providing maximum corrosion protection. 4785 Psi rated hoses and fittings.

Shaft

4140 hard chrome faced microcracked 22mm shaft polished for increased lubrication and longevity. Pressure active shaft seals

Range of adjustment

Up to 3 times the force of adjustment than other aftermarket shocks allowing for greater variation of adjustment.

Piston and Valving

CNC machined piston performance port configuration. Variable rate shim stack enhancing vehicle damping performance.

Mounting

Unlike competitors our spherical bearings in Alpha struts are sealed and greaseable preventing premature failure.

Australian Made

Materials sourced and machine all within Australia. Support network nation wide no matter where you are.

Built in bump zone

This protects your vehicle from damage and provides more control as the shock approaches full compression, increasing damping force to combat suspension bottoming during high-velocity suspension movements

OEM Style bushes

Made from better quality materials while maintaining softness for ride quality, daubable enough to handle tough conditions for extended periods of time.

Sealed and greaseable

Unlike our competitors, the spherical bearings in Alpha struts are sealed and greaseable protecting from the elements and preventing premature failure.

Tuneable

Shocks can be revalved (finely tuned), serviced and fully rebuilt to your requirements as every car weighted different.

Additional Information

Weight Dimensions
45 kg 160 × 30 × 30 cm
